ABB PLC Controlled Laser Perforation Machine 130 m/min 460mm Width

Gambar besar : ABB PLC Controlled Laser Perforation Machine 130 m/min 460mm Width

Detail produk:

Tempat asal:	Guangdong, Cina
Nama merek:	OSAY

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Harga:	US$280,000-300,000

Kontak

Detil Deskripsi produk

Voltase:	380v	Ukuran:	14008201100 mm
Kapasitas produksi:	130 M/menit	Lebar kerja:	460mm
Berat:	210 kg	Konsumsi daya:	hingga 6kw
Model laser:	K co2 ko2 laser berdenyut	Panjang gelombang:	10,6 mikrometer
Perbedaan:	≤2.1 Mrad	Diameter laser:	7.2 mm
Kehidupan resonansi:	>20.000 jam	Waktu penyimpanan resonansi:	< 3 tahun
Waktu denyut nadi pukulan:	5 ~ 60μs	Jumlah Lubang:	0-99 lubang
Konsumsi Kompresor Udara:	4.5m3/jam
Menyoroti:	ABB PLC laser perforation machine , high-speed cigarette production machine , wide-width laser perforation equipment

Advanced PLC Controlled Laser Perforation Equipment for Cigarette Manufacturing Tipping Paper

Product Specifications

Attribute	Value
Type	Other
Computerized	Yes
Voltage	380V
Dimensions (L×W×H)	1400×820×1100 mm
Warranty	1 Year
Production Capacity	130 m/min
Working Width	460mm
Weight	210 KG
Power Consumption	Up to 6kW
PLC Brand	ABB
Laser Model	K series CO2 pulsed laser
Wave Length	10.6 μm
Divergence	≤2.1 mrad
Laser Diameter	7.2 mm
Resonant Life	>20,000 hours
Punch Pulse Time	5 ~ 60μs
Number of Holes	0-99 holes
Air Compressor Consumption	4.5m³/h

Product Description

The tobacco market increasingly demands higher cigarette quality to meet various testing standards, particularly for ventilation rate measurements in tipping cigarettes.

Our advanced laser perforation equipment utilizes full roll coating roller coating method with ordinary cigarette tipping paper and filter rod forming paper. The online laser drilling system reduces impact on cigarette ventilation rates, improves stability, and enhances detection indexes while providing timely control and reducing production costs.

Online Cigarette Laser Drilling Advantages

Low operating costs with reduced focus requirements, convenient control, and stable data output
Wide industry adoption - Used by 80% of foreign cigarette manufacturers
Higher efficiency - No need for glue line cleaning stops, eliminating cigarette leakage, flapping, or hole blocking
Lower production costs compared to traditional methods
Superior stability in perforation quality

Performance Comparison

Drilling Method	Standard Deviation (SD)	Coefficient of Variation (CV%)
Online Perforation Machine	0.8-1.5	11-15%
Tipping Paper Punching Machine	2.0-2.5	15-25%

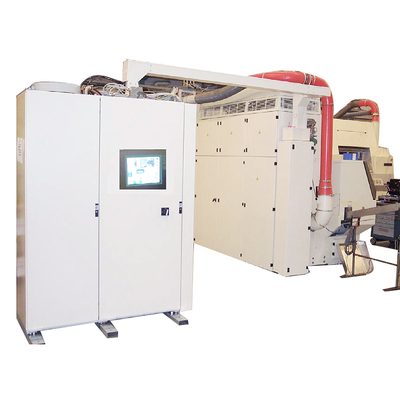

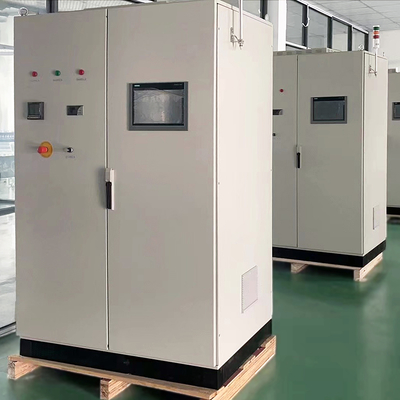

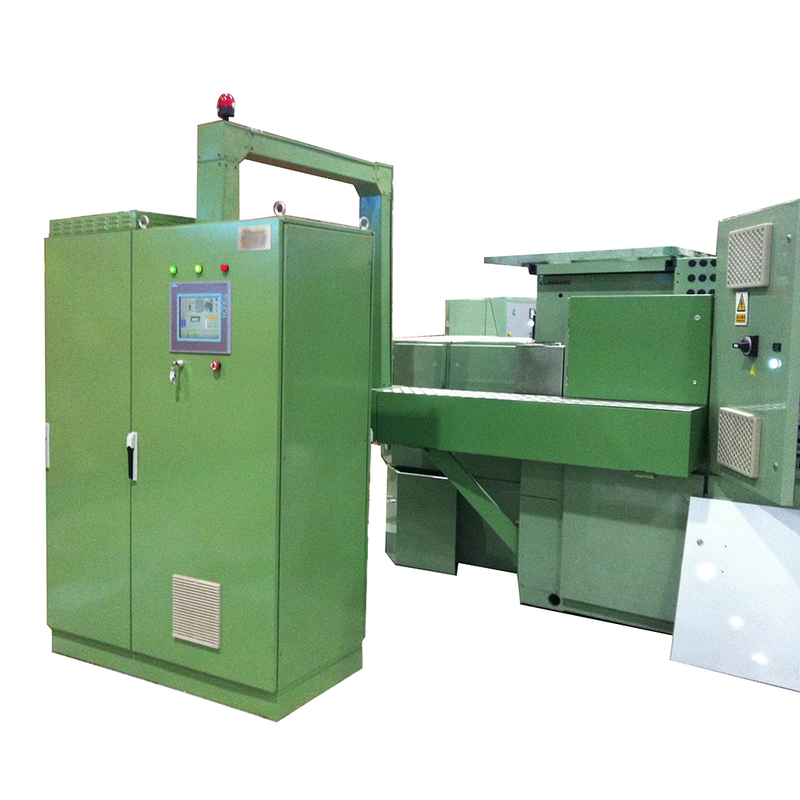

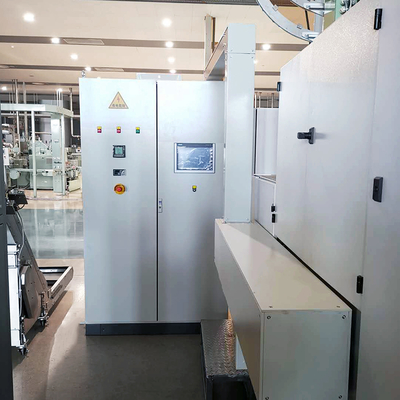

Detailed Equipment Images

About Hainan Osay Technology Group Co., Ltd.

We specialize in manufacturing and supplying spare parts for tobacco machinery, along with providing premium technical services to the tobacco industry. Our team stays current with industry trends to deliver cutting-edge solutions tailored to our customers' specific requirements.

Our product range includes spare parts for cigarette making, packing machines, and filter making machines. We also offer customization services based on client drawings or samples, with all products meticulously crafted to meet tobacco industry standards.
